  • Miniature Size
  • Epoxy Sealed Cable Connection
Unit of Measure

Specifications

Brands

 N/A Dytran

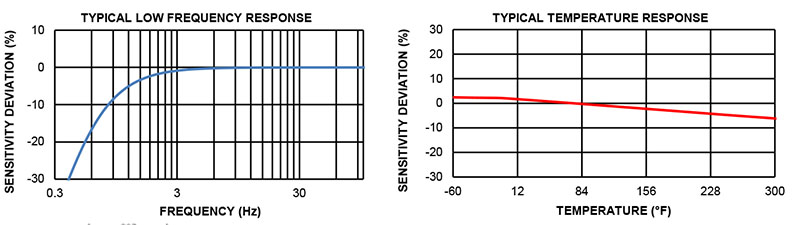

Frequency Response

 N/A 1.2 to 20,000 Hz

Type

 N/A Integrated Electronic Piezoelectric (IEPE)

Physical

Connector Type

 N/A Integral Cable

Note for Connector Type

 N/A 10-32 Jack at end of integral 3FT.cable

Sensing Element Material

 N/A Planar Shear Piezoceramic

Note for Mounting Provision

 N/A Flat mounting surface for adhesive mount.

Weight (Less Cable)

 N/A 0.007 oz0.2 g

Case Material

 N/A Titanium

Environmental

Temperature Range

 N/A -60 to +300 ºF-51 to +149 ºC

Maximum Peak Shock

 N/A 22,000 g215600 m/s²

Environmental Seal

 N/A Laser Welded, Epoxy Sealed Cable

Magnetic Sensitivity at 100 Gauss

 N/A 0.000009 g0.8829 m/s²/T

Base Strain Sensitivity at 250 Micro Epsilon (µe)

 N/A 0.14 g/µε1.37 g/µε

Maximum Root-Mean-Square (RMS) Vibration

 N/A 25,000 g245000 m/s²

Performance

Sensitivity

 N/A 0.2 mV/g0.020 mV/m/s²

Note for Sensitivity

 N/A Measured at 100 Hz, 1 G rms per ISA RP 37.2.
Actual sensitivity is given on a calibration certificate traceable to ISO 17025, supplied with each instrument

Full Scale (F.S.) Range for ± 5 Volts (V) Voltage Output

 N/A 20,000 g196200 m/s²

Frequency Response Tolerance

 N/A ±10 %

Maximum Transverse Sensitivity

 N/A 5 %

Nominal Resonant Frequency

 N/A >95 kHz

Root-Mean-Square (RMS) Equivalent Electrical Noise Resolution

 N/A 0.3 g2.94 m/s²

Full Scale (F.S.) Amplitude Non Linearity (±)

 N/A 1 %

Note for Amplitude Non Linearity

 N/A Measured using zero-based best straight-line method.

Electrical

Note for Power Supply Current

 N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier.

Compliance Voltage Range

 N/A +18 to +30 V

Direct Current (DC) Operating Bias Voltage

 N/A +7 to +9 V

Discharge Time Constant

 N/A 2.0 to 4.0 sec

Output Signal Polarity for Acceleration Toward Top

 N/A Positive

Typical Output Impedance

 N/A 100 O

Power Supply Current Range

 N/A 2 to 20 mA

Case Isolation

 N/A 10 GO

Case Grounding

 N/A Case is grounded to electrical signal/power ground.

Note

Note

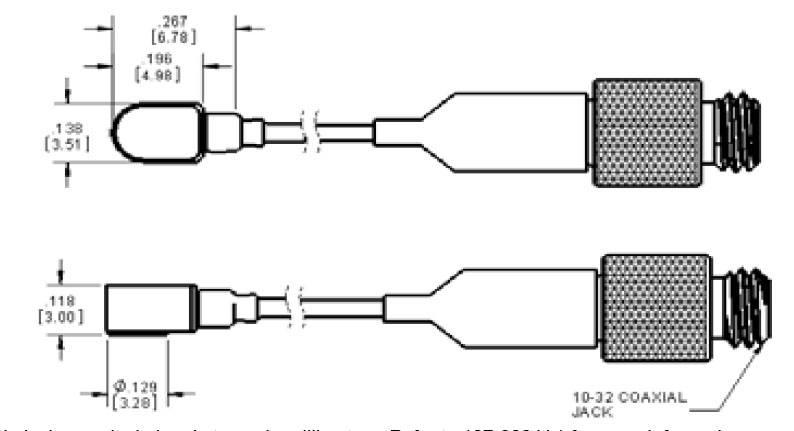

 N/A Units on the line drawing are in inches, units in brackets are in millimeters.

Supplied Accessories

Supplied Accessories

 N/A
  1. Model 6725 installation removal wrench.
  2. Sample of " Small Petro Mounting Wax".
  3. Accredited calibration certificate (ISO 17025)
