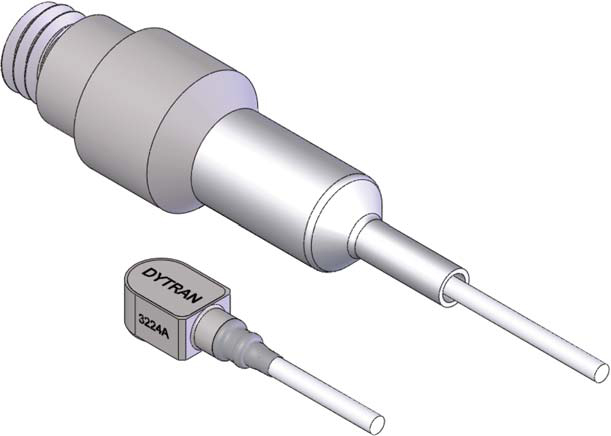

The Dytran 3224A series is a family of ultra-miniature teardrop IEPE accelerometers with integral electronics, designed to adhesively mount in spaces inaccessible to other types of accelerometers, with an overall weight of just 0.2 grams. The sensors are also designed to reliably operate in high temperatures up to +300°F (+149°C).

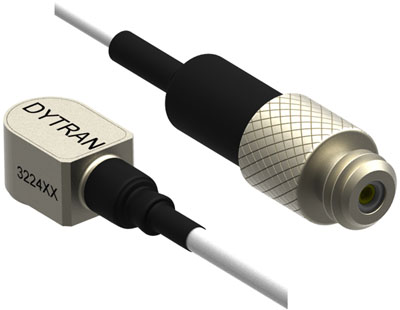

Available with choice of 2, 5 or 10 mV/g sensitivity, the series features a shear sensing element in a lightweight laser welded titanium housing, with a three-foot integral cable terminating to a 10-32 jack. The cable is designed to mate with several other Dytran extension cables.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A Miniature/ESS

Measuring Acceleration Range

 N/A 500 g4903 m/s²

Frequency Response

 N/A 0.25 to 7000 Hz

Frequency Response Gain

 N/A -10 dB+10 dB

Spectral Noise

 N/A A

Electrical Isolation

 N/A No

Maximum Shock

 N/A 3000 g29420 m/s²

Recommended Mounting Accessories

 N/A One (1) model 6725A removal wrench (supplied)

Recommended Cabling Accessories

 N/A Integral 3-foot coaxial cable assembly (supplied) Model 6011A coaxial cable assembly (sold separately)

Physical

Housing Material

 N/A Titanium

Sensing Element

 N/A Quartz, Shear

Weight

 N/A 0.007 oz

Environmental

Temperature Range

 N/A -60 to +300 ºF-51 to +149 ºC

Thermal Coefficient of Sensitivity

 N/A 0.07 %/°F0.14 %/°C

Environmental Seal

 N/A Epoxy

Performance

Sensitivity

 N/A 1 mV/m/s²

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Applications

Applications

 N/A Environmental Stress Screening (ESS) General Purpose Vibration Measurements where Space is at a Premium Mechanical Shock Pc Board Vibration Measurements Product Response Testing

Features

Features

 N/A +300 ºF (+149 ºC) Operation 10 mV/g sensitivity IEPE Ultra-Miniature Weighs 0.2 grams
