Brands |
N/A Dytran |

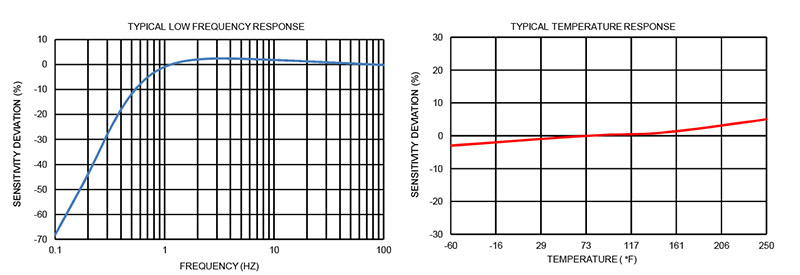

Frequency Response |
N/A 1.0 to 10000 Hz |
Electrical Isolation |
N/A 10 GO |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) Accelerometer |
Housing Material |
N/A Titanium |

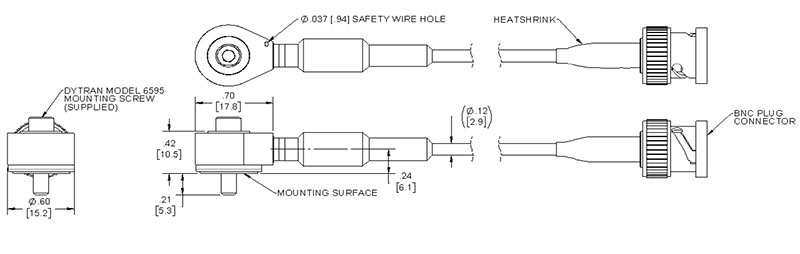

Mounting Provision |
N/A 8-32 Mtg Screw |
Sensing Element Material |
N/A Ceramic |
Sensing Element Mode |
N/A Shear |
Cable Type |
N/A Integral to BNC |
Weight (Less Cable) |
N/A 0.34 oz9.6 g |
Temperature Range |
N/A -60 to 212 ºF-51 to 10 ºC |
Maximum Peak Vibration (±) |
N/A 500 g4905 g |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 5,000 g49,050 m/s² |
Base Strain Sensitivity at 250 Micro Epsilon (µe) |
N/A 0.04 g/µε0.4 g/µε |
Sensitivity |
N/A 10 mV/g1 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Frequency Response Tolerance |
N/A ±5 % |
Resonant Frequency |
N/A >31 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measured using zero-based best straight-line method, % of F.S. or any lesser range. |
Root-Mean-Square (RMS) Broadband Resolution |
N/A 0.001 g0.01 m/s² |
Maximum Transverse Sensitivity |
N/A 5 % |
Range for ± 5 Volts (V) Voltage Output |
N/A 500 g4905 m/s² |
Power Supply Current |
N/A 2 to 20 mA |
Note for Power Supply Current |
N/A
Do not apply power to this device without current limiting, 20 mA MAX. To do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +18 to +20 V |
Direct Current (DC) Operating Bias Voltage |
N/A +11 to +13 V |
Discharge Time Constant |
N/A 0.5 to 1.5 sec |
Typical Output Impedance |
N/A 100 O |
Minimum Electrical Isolation |
N/A 10 GO |
Note |
N/A In the interest of constant product improvement, we reserve the right to change specifications without notice. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary overtime. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. |
