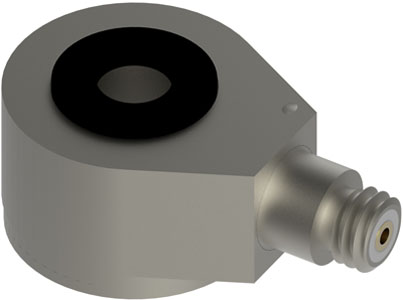

The Dytran 3211A series is a family of lightweight IEPE accelerometers, designed for applications where 360° orientation and a low-profile design are critical.

Available in two different models with choice of 10 mV/g or 100 mV/g sensitivity, the accelerometers incorporate a ceramic shear crystal sensing element for high natural frequency, packaged in a rugged titanium housing. Units are case isolated to avoid EMI/ground loop interference.

The 3211A series features a 10-32 radial connector and #8 or M4 thread screw mounting capabilities. The miniature thru-hole design allows for the sensor to be turned 360° prior to securing for ease of installation. Units incorporate low-noise JFET electronics and are hermetically sealed for reliable performance in high-humidity and dirty environments.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A General Purpose

Measuring Acceleration Range

 N/A 50 g490 m/s²

Frequency Response

 N/A 1.0 to 10000 Hz

Frequency Response Gain

 N/A -5 dB+5 dB

Spectral Noise

 N/A H

Electrical Isolation

 N/A 1

Maximum Shock

 N/A 5000 g49033 m/s²

Recommended Mounting Accessories

 N/A One (1) model 6595 (8-32) mounting screw (supplied)

Recommended Cabling Accessories

 N/A Model 6010A or model 6011A coaxial cable assembly (sold separately)

Physical

Housing Material

 N/A Titanium

Sensing Element

 N/A Ceramic, Shear

Weight

 N/A 10 g0.35 oz

Environmental

Temperature Range

 N/A -60 to 250 ºF-51 to 121 ºC

Thermal Coefficient of Sensitivity

 N/A 0.02 %/°F0.04 %/°C

Environmental Seal

 N/A Hermetic

Performance

Sensitivity

 N/A 100 mV/g10 mV/m/s²

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Applications

Applications

 N/A General Purpose Vibration Monitoring Modal Analysis Vibration control

Features

Features

 N/A 360º Cable Orientation Case Isolated IEPE Low Noise Single Axis
