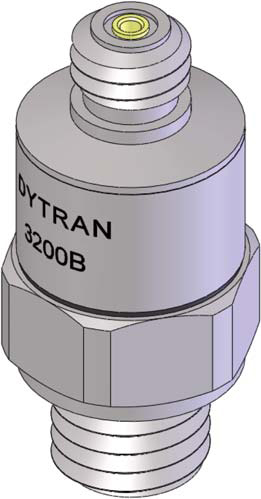

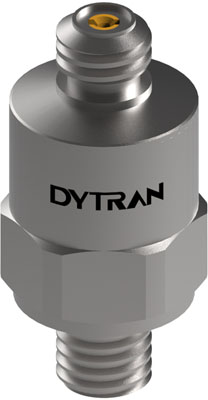

The Dytran 3200B series is a family of highly rugged IEPE accelerometers with a natural frequency of greater than 100 kHz, designed to measure severe shocks and other extreme short duration events. High shock measurements are typically characterized as such above the range of 2,500 g’s. In order to accurately measure shock levels of this magnitude, accelerometers must have a high natural frequency, rugged construction and be fairly compact in size.

Available in six unique models, with six full scale ranges between 2,500 and 70,000 g, the 3200B series features a quartz crystal sensing element, operating in compression mode, housed in a stainless steel housing for a total weight of 6 grams. Units are electrically base isolated and feature a broad frequency response.

The Dytran 3200B series is available in several different mounting configurations to suit individual user requirements: an integral 1/4-28 mounting stud (3200B series); integral 10-32 mounting stud (3200BT series) and metric M6 x 1.0 integral mounting stud (3200BM series). All other specifications remain the same.
