Brands |
N/A Dytran |
Height |
N/A 0.8 in20.32 mm |
Frequency Response |
N/A 2,500 Hz |
Type |
N/A Charge Mode |
Housing Material |
N/A Stainless Steel |
Maximum Weight |
N/A 3.0 oz85 g |
Length |
N/A 2.28 in57.91 mm |

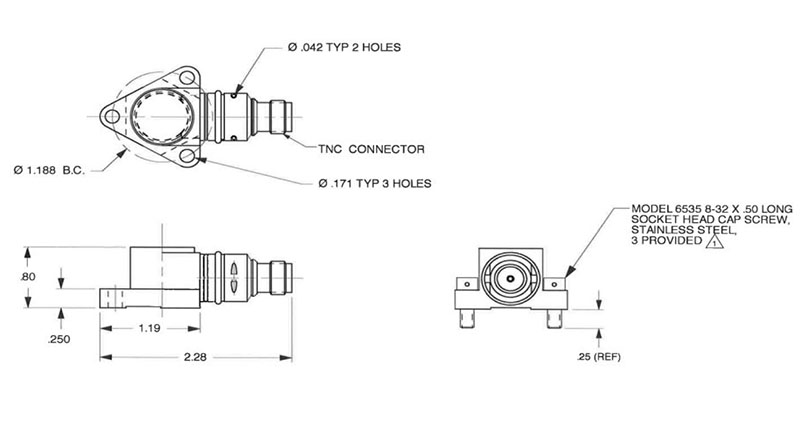

Three-Hole Mounting Diameter |
N/A 1.188 in30.18 mm |
Connector Type |
N/A TNC Jack |
Connector Material |
N/A Stainless Steel |
Sensing Element Material |
N/A Ceramic |
Sensing Element Mode |
N/A Compression |
Temperature Range |
N/A -65 to 500 ºF-54 to 260 ºC |
Maximum Peak Vibration (±) |
N/A 1000 g9810 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 2000 g19620 m/s² |
Coefficient of Thermal Sensitivity |
N/A 0.02 %/°F0.036 %/°C |
Base Strain Sensitivity |
N/A 0.012 g/µε0.12 m/s²/µε |
Sensitivity |
N/A 2.4 to 4.5 pC/g0.24 to 0.46 pC/m/s² |
Frequency Response Tolerance |
N/A ±5 % |
Resonant Frequency |
N/A >13 kHz |
Maximum Transverse Sensitivity |
N/A 5 % |
Maximum Full Scale (F.S.) Amplitude Non-Linearity (±) |
N/A 2 % |
Note for Maximum Full Scale (F.S.) Amplitude Non-Linearity (±) |
N/A Measured using zero-based straight line method, percentage of F.S. or any lesser range. |
Note for Peak Full Scale (F.S.) Range |
N/A This parameter depends on the gain settings of charge amplifier used. |
