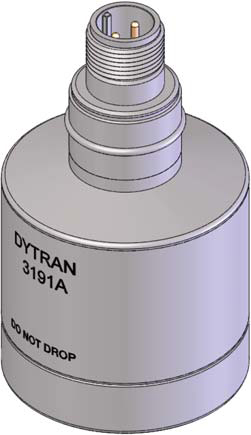

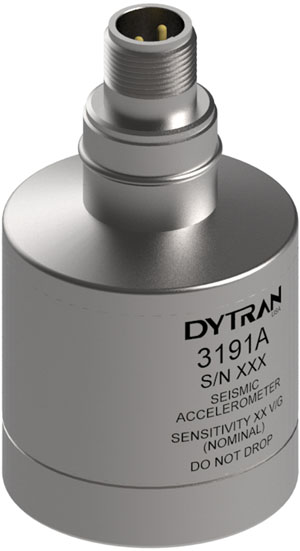

The Dytran 3191A series is a family of IEPE accelerometers with built-in Faraday shield for electrostatic noise immunity, excellent low-frequency response of 0.08 Hz and the capability to resolve vibrations as low as 0.000001 g’s RMS.

Available in two models with sensitivity of 5 V/g or 10 V/g, design of the model 3191A series incorporates an annular shear ceramic sensing element, packaged in a highly rugged stainless steel housing with a 2-pin MIL-C-5015 axial connector and 1/4-28 mounting hole. The series is designed to be directly compatible with the Dytran model 6194 Immersion Proof™ sealing boot. When used together, sensors remain full functional in an IP65 environment. The sensors are also hermetically sealed for reliable operation in high-humidity and dirty environments and case isolated to avoid EMI/ground loop interference.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A Industrial

Measuring Acceleration Range

 N/A 0.5 g5 m/s²

Frequency Response

 N/A 0.8 to 1000 Hz

Frequency Response Gain

 N/A -5 dB+5 dB

Spectral Noise

 N/A I

Electrical Isolation

 N/A 1

Maximum Shock

 N/A 100 g981 m/s²

Recommended Mounting Accessories

 N/A Model 6194 Immersion Proof™ Boot (sold separately) One (1) model 6176 (1/4-28 to 1/4-28) mounting stud (supplied)

Recommended Cabling Accessories

 N/A Model 6038A coaxial cable assembly (sold separately)

Physical

Housing Material

 N/A Stainless Steel

Sensing Element

 N/A Ceramic, Annular Shear

Weight

 N/A 775 g27.34 oz

Environmental

Temperature Range

 N/A -60 to +200 ºF-51 to +93 ºC

Thermal Coefficient of Sensitivity

 N/A 0.07 %/°F0.14 %/°C

Environmental Seal

 N/A Hermetic

Performance

Sensitivity

 N/A 10000 mV/g1000 mV/m/s²

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Applications

Applications

 N/A Bridge Monitoring Low-frequency Vibration Measurements Modal Analysis of Large Structures Seismic Monitoring

Features

Features

 N/A 2-Pin MIL-C-5015 Axial Connector Available in Two Models with choice of 5 V/g or 10 V/g output Available with Water and Oil Resistant Case Isolated Environmental Boot IEPE Single Axis Stainless Steel Construction Ultra-high Sensitivity
