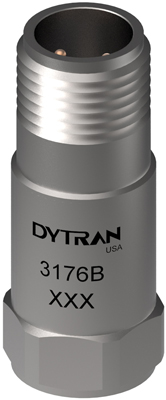

The Dytran model 3176B is a rugged, cost-effective IEPE accelerometer with a sensitivity of 100 mV/g and excellent low-frequency response of 0.3 Hz.

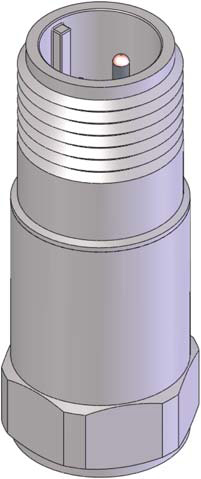

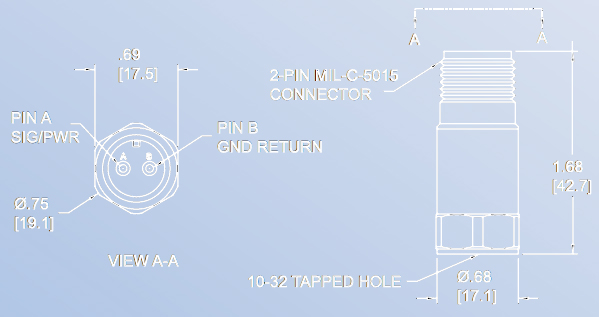

Design of the model 3176B incorporates a ceramic shear sensing element, packaged in a stainless steel housing with a 2-pin MIL-C-5015 axial connector and 10-32 stud mounting capabilities. The sensor is hermetically sealed for reliable operation in high-humidity and dirty environments and internally case isolated to avoid EMI/ground loop interference.

Model 3176B is part of the 3176B series of accelerometers, which differs only in terms of their type of mounting configuration. Model 3176B features a 10-32 stud mount, while the model 3176B1 incorporates a 1/4-28 stud mount.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A Industrial

Measuring Acceleration Range

 N/A 50 g490 m/s²

Frequency Response

 N/A 0.3 to 10,000 Hz

Frequency Response Gain

 N/A -10 dB+10 dB

Spectral Noise

 N/A F

Electrical Isolation

 N/A 1

Maximum Shock

 N/A 5000 g49033 m/s²

Recommended Mounting Accessories

 N/A One (1) model 6200S (10-32 to 10-32) mounting stud (supplied)

Recommended Cabling Accessories

 N/A Model 6038A coaxial cable assembly (sold separately)

Physical

Housing Material

 N/A Stainless Steel

Sensing Element

 N/A Ceramic, Shear

Weight

 N/A 44 g1.55 oz

Environmental

Temperature Range

 N/A -60 to 250 ºF-51 to 121 ºC

Thermal Coefficient of Sensitivity

 N/A 0.07 %/°F0.14 %/°C

Environmental Seal

 N/A Hermetic

Performance

Sensitivity

 N/A 100 mV/g10 mV/m/s²

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Applications

Applications

 N/A General Purpose Vibration Monitoring Industrial Vibration Monitoring Walkabout Data Collection

Features

Features

 N/A 10-32 Stud Mount 2-Pin MIL-C-5015 Axial Connector Case Isolated High Sensitivity IEPE Single Axis Stainless Steel Construction
