Brands |
N/A Dytran |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 1 |
Housing Material |
N/A 300 Series Stainless Steel |
Maximum Weight (Less Cable) |
N/A 1.5 oz42 g |
Housing Isolation |
N/A Case Isolated |
Temperature Range |
N/A -67 to 257 ºF-55 to 125 ºC |
Maximum Peak Vibration (±) |
N/A 600 g5,884 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 5,000 g49,033 m/s² |
Typical Magnetic Sensitivity Per Gauss |
N/A 0.00035 g0.00004 m/s² |
Base Strain Sensitivity |
N/A 0.0003 g/µε0.00294 m/s²/µε |
Sensitivity |
N/A 10 mV/g1.02 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Resonant Frequency |
N/A > 40 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measured using zero-based best straight-line method, % of F.S. or any lesser range. |
Maximum Transverse Sensitivity |
N/A 5 % |
Peak Full Scale (F.S.) Range for ± 5 Volts (V) Voltage Output (±) |
N/A 500 g4,903 m/s² |

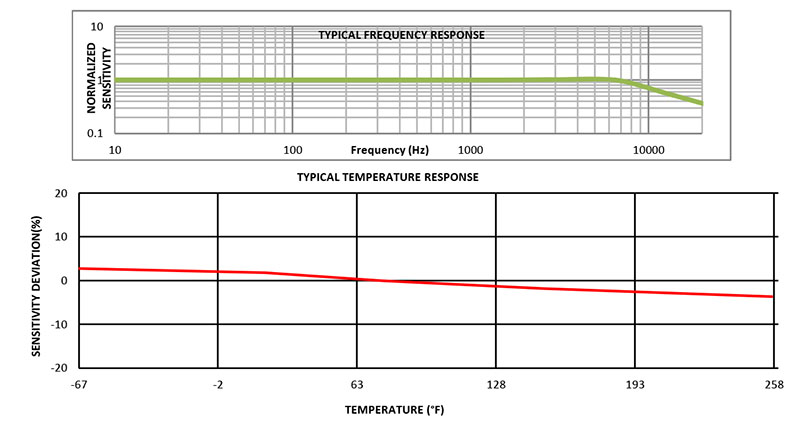

Frequency Response at ±3 Decibel (dB) Bandwidth |
N/A 1 to 10,000 Hz |
Mechanical Filter Resonance |
N/A >13 kHz |
Typical Spectral Noise at 1.25 Hertz (Hz) Frequency |
N/A 0.0008 g/sqr0.00785 m/s²/sqr |
Typical Spectral Noise at 10 Hertz (Hz) Frequency |
N/A 0.0002 g/sqr0.00196 m/s²/sqr |
Typical Spectral Noise at 100 Hertz (Hz) Frequency |
N/A 0.00008 g/sqr0.00078 m/s²/sqr |
Typical Spectral Noise at 1000 Hertz (Hz) Frequency |
N/A 0.00009 g/sqr0.00088 m/s²/sqr |
Typical Spectral Noise at 10000 Hertz (Hz) Frequency |
N/A 0.00002 g/sqr0.00020 m/s²/sqr |
Power Supply Current |
N/A 2 to 10 mA |
Note for Power Supply Current |
N/A Do not apply power to this device without current limiting, 20 mA MAX. To do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Typical Output Impedance |
N/A 100 O |
Direct Current (DC) Operating Bias Voltage at Room Temperature |
N/A 7.5 to 13.0 V |
Warm up Time |
N/A <4 sec |
Overload Recovery |
N/A <50 µs |
Sensitivity Change Verses (Vs) Current |
N/A <1 % |
Minimum Electrical Isolation |
N/A 10 GO |
Electrical Filter Corner Frequency (2 Pole) |
N/A 10 kHz |
Note |
N/A

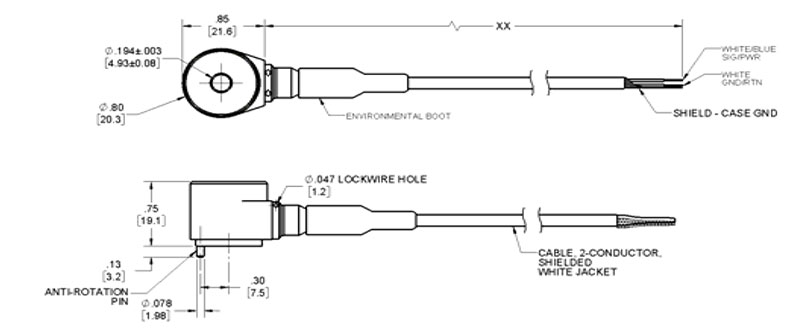

In the interest of constant product improvement, we reserve the right to change specifications without notice. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary overtime. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. Units on the line drawing are in inches, units in brackets are in millimeters. |
