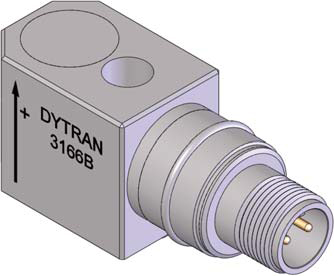

The Dytran 3166B Series is a family of low-noise IEPE accelerometers, featuring a thru-hole mount and radial 2-pin MIL-C-5015 connector. This unique configuration allows the sensor to be turned 360° prior to securing for ease of installation.

Available in three different models, with sensitivities from 10 mV/g to 500 mV/g, design of the 3166B series incorporates a ceramic shear sensing element packaged in a highly rugged stainless steel housing. Units are hermetically sealed for reliable operation in high-humidity and dirty environments and are internally case isolated to avoid EMI/ground loop interference.

This series is also directly compatible with the Dytran model 6194 Immersion Proof™ sealing boot (sold separately). When used together, sensors remain fully functional in an IP65 environment.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A Industrial

Measuring Acceleration Range

 N/A 50 g490 m/s²

Frequency Response

 N/A 0.5 to 5,000 Hz

Frequency Response Gain

 N/A -5 dB+5 dB

Spectral Noise

 N/A F

Electrical Isolation

 N/A 1

Maximum Shock

 N/A 3000 g29420 m/s²

Recommended Mounting Accessories

 N/A Model 6194 Immersion Proof™ Boot (sold separately) One (1) model 6523 (1/4-28) mounting screw (supplied)

Recommended Cabling Accessories

 N/A Model 6038A coaxial cable assembly (sold separately)

Physical

Housing Material

 N/A Stainless Steel

Sensing Element

 N/A Ceramic, Shear

Weight

 N/A 228 g8.04 oz

Environmental

Temperature Range

 N/A -60 to 250 ºF-51 to 121 ºC

Thermal Coefficient of Sensitivity

 N/A 0.07 %/°F0.14 %/°C

Environmental Seal

 N/A Hermetic

Performance

Sensitivity

 N/A 100 mV/g10 mV/m/s²

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Applications

Applications

 N/A General Purpose Vibration Monitoring Industrial Vibration Monitoring Low-profile or Space Constrained Vibration Monitoring Rotating Machinery Vibration Monitoring

Features

Features

 N/A 2-Pin MIL-C-5015 Radial Connector 360º Cable Orientation Available with Water and Oil Resistant Environmental Boot Case Isolated High Sensitivity IEPE Low Profile Single Axis Stainless Steel Construction
