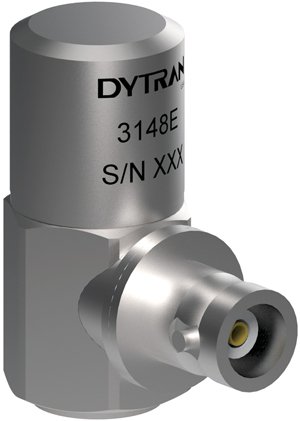

The Dytran model 3148E is a highly rugged IEPE accelerometer with a 100 mV/g sensitivity and low-frequency vibration measurement capabilities down to 0.5 Hz.

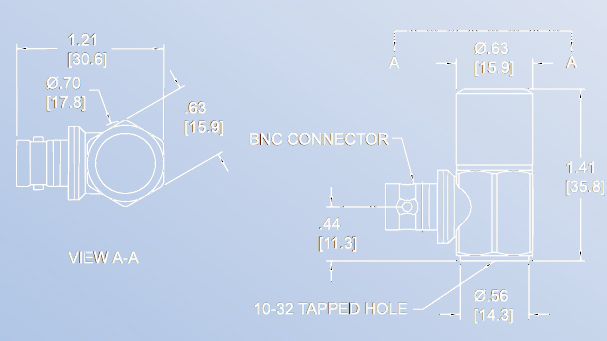

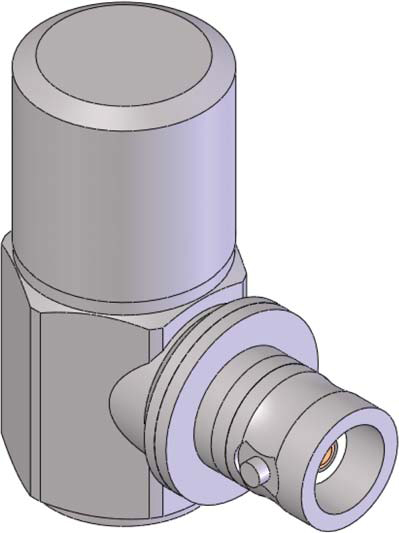

Design of the model 3148E incorporates a ceramic shear sensing element packaged in a stainless steel housing, incorporating a radial BNC connector and 10-32 mounting hole. The model 3148E is also hermetically sealed for reliable operation in high-humidity and dirty environments and base isolated to avoid EMI/ground loop interference.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A Industrial

Measuring Acceleration Range

 N/A 500 g4903 m/s²

Frequency Response

 N/A 0.5 to 5,000 Hz

Frequency Response Gain

 N/A -5 dB+5 dB

Spectral Noise

 N/A F

Electrical Isolation

 N/A 1

Maximum Shock

 N/A 3000 g29420 m/s²

Recommended Mounting Accessories

 N/A One (1) 6200 (10-32 to 10-32) mounting stud (supplied)

Recommended Cabling Accessories

 N/A Model 6020A four conductor cable assembly (sold separately)

Physical

Housing Material

 N/A Stainless Steel

Sensing Element

 N/A Ceramic, Shear

Weight

 N/A 48 g1.69 oz

Environmental

Temperature Range

 N/A -60 to 250 ºF-51 to 121 ºC

Thermal Coefficient of Sensitivity

 N/A 0.07 %/°F0.14 %/°C

Environmental Seal

 N/A Hermetic

Performance

Sensitivity

 N/A 100 mV/g10 mV/m/s²

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Applications

Applications

 N/A General Purpose Triaxial Vibration Monitoring Industrial Vibration Monitoring Walkabout Data Collection

Features

Features

 N/A Base Isolated BNC Radial Connector High Sensitivity IEPE Single Axis Stainless Steel Construction
