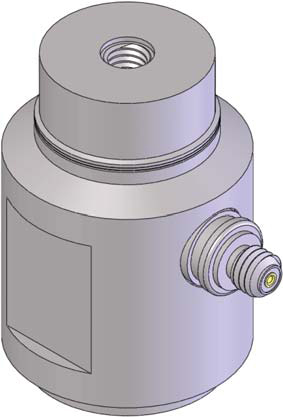

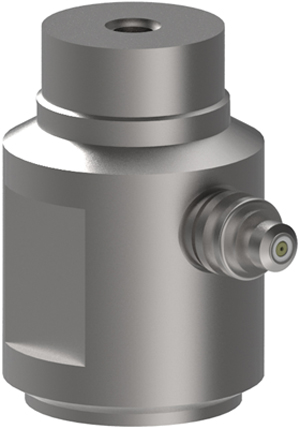

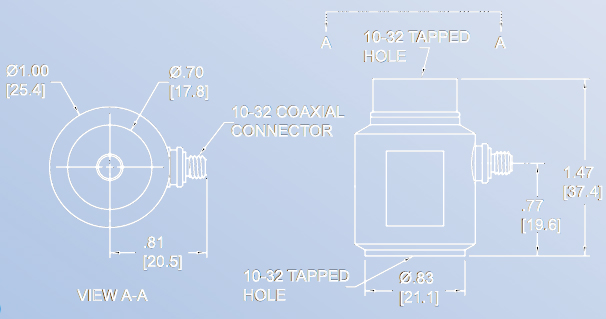

The Dytran model 3123A is a double ended IEPE reference (comparison) accelerometer, offering a convenient means of determining the sensitivity and frequency response characteristics of unknown acceleration, velocity and displacement sensors. A vibration laboratory already equipped with an electrodynamic shaker and control system can easily incorporate use of the model 3123A to accomplish in-house NIST traceable calibrations. Model 3123A offers a 100 mV/g sensitivity and mounts to a shaker head via a 10-32 tapped hole.

Back-to-back comparisons with a double ended calibration standard accelerometer, such as the Dytran model 3123A, entails mounting the test accelerometer directly to the top mounting surface of the calibration standard (model 3123A) and driving the coupled pair with an electrodynamic shaker system at various frequencies and amplitude. At each test frequency, the amplitude is set and the corresponding output read from the test accelerometer. To form a complete measurement system, the user will need to supply the cables, power supply unit and electrodynamic shaker system. The model 3123A should be used for low-frequency, low-g level measurements.
