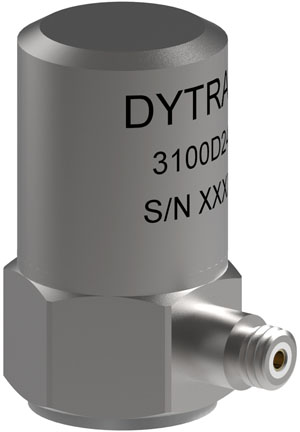

The Dytran model 3100D24 is an IEPE accelerometer with ultra-high sensitivity of 1,000 mV/g. Design of the model 3100D24 features a ceramic shear sensing element, packaged in a 300 series stainless steel 5/8-inch hex housing, with a 10-32 radial connector and 10-32 mounting hole for general purpose installation across a variety of applications.

Units are case isolated to avoid EMI/ground loop interference and are hermetically sealed for reliable operation in high humidity and dirty environments. Optional Transducer Electronic Data Sheet (TEDS; per IEEE 1451.4) capabilities are also available for larger channel count applications.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A General Purpose

Measuring Acceleration Range

 N/A 5 g49 m/s²

Frequency Response

 N/A 1 to 1000 Hz

Frequency Response Gain

 N/A -5 dB+5 dB

Spectral Noise

 N/A G

Electrical Isolation

 N/A 1

Maximum Shock

 N/A 200 g1961 m/s²

Recommended Mounting Accessories

 N/A One (1) model 6200 (10-32 to 10-32) mounting stud (supplied) One (1) model 6215 thermal boot (supplied)

Recommended Cabling Accessories

 N/A Model 6011A coaxial cable assembly (sold separately)

Physical

Housing Material

 N/A Stainless Steel

Sensing Element

 N/A Ceramic, Shear

Weight

 N/A 55 g1.94 oz

Environmental

Temperature Range

 N/A -60 to 250 ºF-51 to 121 ºC

Thermal Coefficient of Sensitivity

 N/A 0.03 %/°F0.06 %/°C

Environmental Seal

 N/A Hermetic

Performance

Sensitivity

 N/A 1000 mV/g102 mV/m/s²

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Applications

Applications

 N/A General Purpose Vibration Monitoring Low Frequency Measurements Low-g Monitoring Applications Seismic Monitoring Structural Monitoring of Bridges, Floors and Foundations

Features

Features

 N/A Case Isolated High Sensitivity IEPE Low Noise Optional TEDS Capabilities Single Axis Small Size
