Brands |
N/A Dytran |
Height |
N/A 0.41 in10.41 mm |

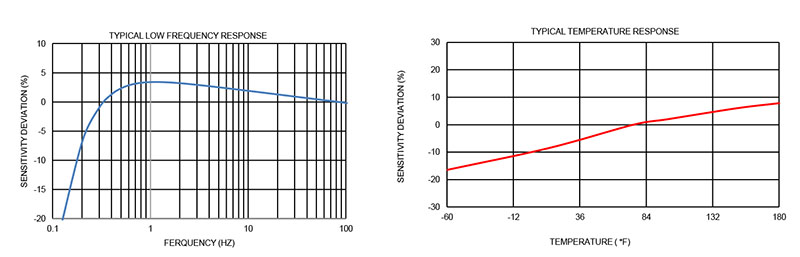

Frequency Response |
N/A 0.15 to 10,000 Hz0.3 to 5,000 Hz |
Electrical Isolation |
N/A Case Grounded |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 1 |
Element Style Material |
N/A Ceramic |

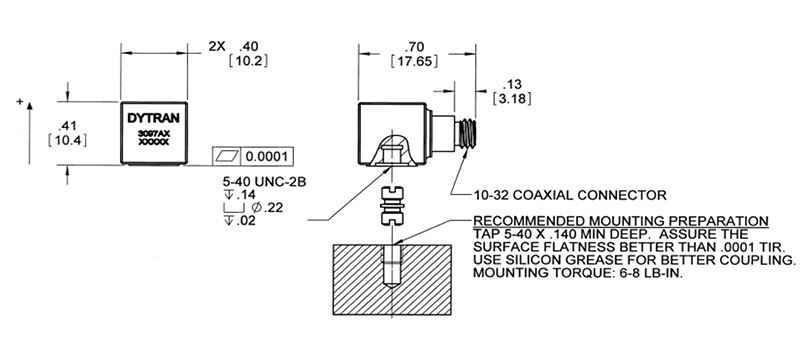

Square Size |
N/A 0.40 x 0.40 in10.16 x 10.16 mm |
Connector Size |
N/A 10-32 |
Connector Type |
N/A Coaxial |
Tapped Hole Mounting Provision |
N/A 5-40 Unified Coarse (UNC-2B) |
Base Material |
N/A Titanium |
Cap and Connector Material |
N/A Titanium |
Element Style Type |
N/A Planar Shear |
Weight |
N/A 0.15 oz4.3 g |
Temperature Range |
N/A -60 to 180 ºF-51 to +82 ºC |
Maximum Peak Vibration (±) |
N/A 400 g3,924 m/s² |
Maximum Peak Shock (±) |
N/A 5,000 g49,050 m/s² |
Transducer Electronic Data Sheet (TEDS) Operating Temperature |
N/A -40 to +185 ºF-40 to +85 ºC |
Transducer Electronic Data Sheet (TEDS) Feature |
N/A Institute of Electrical and Electronics Engineers (IEEE) 1451.4 |
Environmental Hermetic Seal |
N/A Glass-to-Metal/Welded |
Sensitivity |
N/A 100 mV/g10.2 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Frequency Response Tolerance |
N/A ±15 %±5 % |
Resonant Frequency |
N/A > 35 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measure using zero-based straight line method, % of F.S. or any lesser range |
Maximum Transverse Sensitivity |
N/A 5 % |
Full Scale (F.S.) Range for ± 5 Volts (V) Voltage Output (±) |
N/A 50 g490 m/s² |
Root-Mean-Square (RMS) Equivalent Electrical Noise Floor |
N/A 0.0004 g0.004 m/s² |
±5 Degree Phase Response |
N/A 5 to 3,000 Hz |
Strain Sensitivity |
N/A 0.002 g/µε0.02 m/s²/µε |
Power Supply Current |
N/A 2 to 20 mA |
Note for Power Supply Current |
N/A Do not apply power to this system without current limiting, 20 mA MAX. To do so will destroy the IC charge amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +11 to +13 V |
Output Signal Polarity for Acceleration Toward Top |
N/A Positive |
Typical Output Impedance |
N/A 100 O |
Nominal Discharge Time Constant |
N/A 1.5 to 2.5 sec |
