Brands |
N/A Dytran |

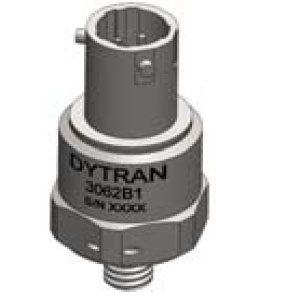

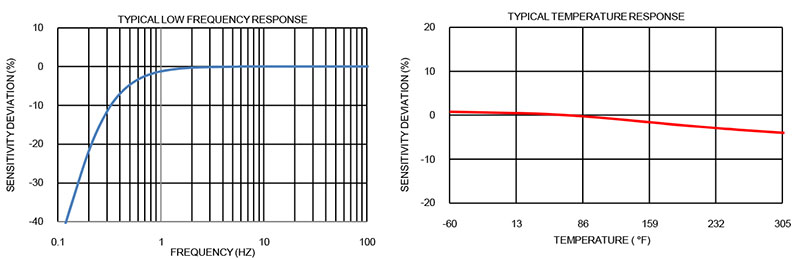

Frequency Response |
N/A 0.25 to 15,000 Hz0.48 to 10,000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Housing Material |
N/A 300 Series Stainless Steel |
Maximum Weight |
N/A 1.51 oz43 g |

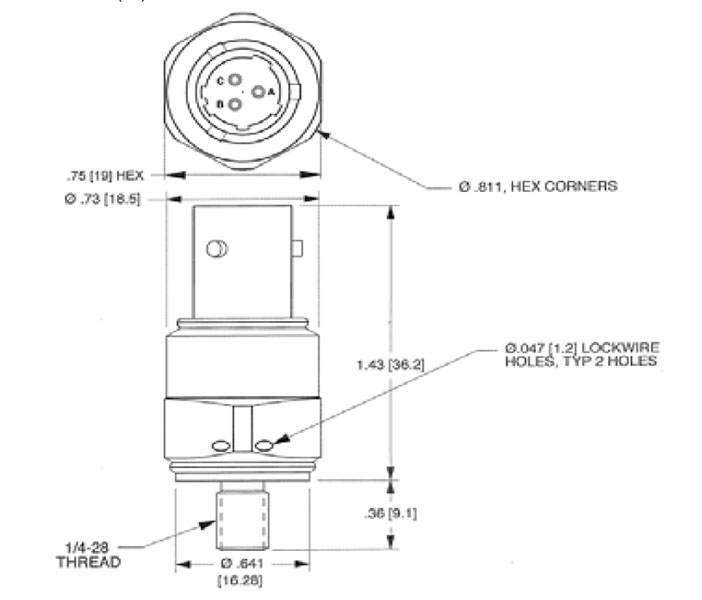

Connector Type |
N/A Bayonet Style |
Connector Material |
N/A 300 Series Stainless Steel |
Connector Pins |
N/A 3 |
Note for Connector Pins |
N/A Pin A-case ground, Pin B - sig/pwr return, Pin C - sig/pwr |
Integral Stud Mounting Provision |
N/A 1/4 - 28 United Fine (UNF-2A) |
Base Material |
N/A 300 Series Stainless Steel |
Element Style |
N/A Single Crystal Shear |
Temperature Range |
N/A -60 to +305 ºF-54 to 152 ºC |
Maximum Peak Vibration (±) |
N/A 600 g5886 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 3000 g29430 m/s² |
Sensitivity |
N/A 25 mV/g2.55 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Frequency Response Tolerance |
N/A ±15 %±5 % |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measure using zero-based straight line method, % of F.S. or any lesser range. |
Maximum Transverse Sensitivity |
N/A 5 % |
Full Scale (F.S.) Range for ± 1 Volts (V) Voltage Output (±) |
N/A 200 g1,962 m/s² |
Nominal Resonant Frequency |
N/A >30 kHz |
Root-Mean-Square (RMS) Equivalent Electrical Noise (Resolution) |
N/A 0.009 g0.088 m/s² |
Strain Sensitivity |
N/A 0.002 g/µε0.02 m/s²/µε |
Power Supply Current |
N/A 2 to 20 mA |
Note for Power Supply Current |
N/A Do not apply power to this system without current limiting, 20 mA MAX. To do so will destroy the IC charge amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +7.5 to +9.5 V |
Discharge Time Constant |
N/A 1.0 to 1.8 sec |
Output Signal Polarity for Acceleration Toward Top |
N/A Positive |
Typical Output Impedance |
N/A 100 O |
Minimum Electrical Isolation |
N/A 10 GO |
Note for Electrical Isolation |
N/A (Ground (Pin B) to Case ( pin A)) |
