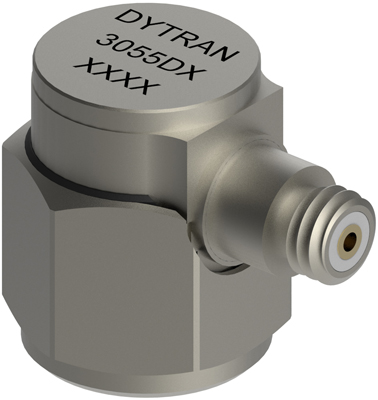

The Dytran 3055D series is a family of cost-effective, single axis IEPE accelerometers.

Offered in five different models with available sensitivities from 10 mV/g to 500 mV/g, design of the 3055D series features a ceramic shear sensing element packaged within a rugged titanium housing, with a 10-32 radial connector and 10-32 stud mounting capabilities. Optional Transducer Electronic Data Sheet (TEDS; per IEEE 1451.4) capabilities are also available for larger channel count applications.

Units are base isolated to avoid EMI/ground loop interference and incorporate low-noise JFET electronics. They are also hermetically sealed for reliable performance in high-humidity and dirty environments.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A General Purpose

Measuring Acceleration Range

 N/A 100 g981 m/s²

Frequency Response

 N/A 1.0 to 10000 Hz

Frequency Response Gain

 N/A -5 dB+5 dB

Spectral Noise

 N/A F

Electrical Isolation

 N/A 1

Maximum Shock

 N/A 2000 g19613 m/s²

Recommended Mounting Accessories

 N/A One (1) model 6200 (10-32 to 10-32) mounting stud (supplied)

Recommended Cabling Accessories

 N/A Model 6011A coaxial cable assembly (sold separately)

Physical

Housing Material

 N/A Titanium

Sensing Element

 N/A Ceramic, Shear

Weight

 N/A 10 g0.35 oz

Environmental

Temperature Range

 N/A -60 to 250 ºF-51 to 121 ºC

Thermal Coefficient of Sensitivity

 N/A 0.06 %/°F0.12 %/°C

Environmental Seal

 N/A Hermetic

Performance

Sensitivity

 N/A 50 mV/g5 mV/m/s²

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Applications

Applications

 N/A General Purpose Vibration Monitoring Modal Analysis Vibration control

Features

Features

 N/A Base Isolated High Sensitivity IEPE Lightweight Optional TEDS Capabilities Radial Connector Single Axis
