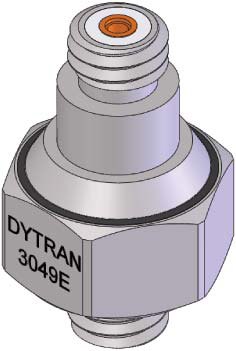

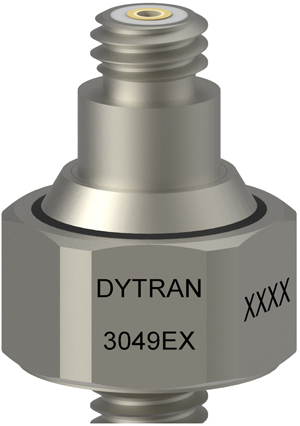

Dytran models 3049E and 3049E2 are general purpose IEPE accelerometers with available sensitivities of 10 mV/g and 100 mV/g and a frequency response to 10,000 Hz. Featuring a ceramic shear sensing element packaged in a lightweight titanium housing, the sensors are hermetically sealed for reliable operation in high-humidity and dirty environments. They are also base isolated to avoid EMI/ground loop interference.

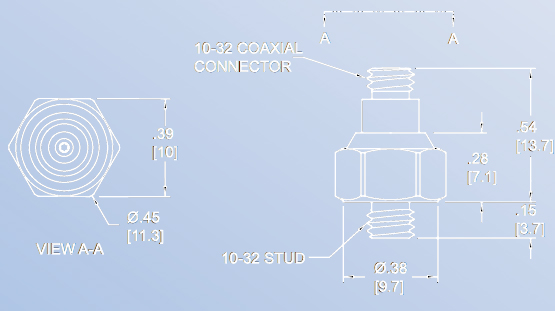

Models 3049E and 3049E2 are part of the 3049E series of accelerometers, which offer the same high-reliability performance with various mounting options. The Dytran models 3049E and 3049E2 feature 10-32 stud mounting, while models 3049E1 and 3049E3 offer adhesive mounting capabilities.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A General Purpose

Measuring Acceleration Range

 N/A 50 g490 m/s²

Frequency Response

 N/A 1.0 to 10000 Hz

Frequency Response Gain

 N/A -5 dB+5 dB

Spectral Noise

 N/A G

Electrical Isolation

 N/A 1

Maximum Shock

 N/A 5000 g49033 m/s²

Recommended Cabling Accessories

 N/A Model 6011A coaxial cable assembly (sold separately)

Physical

Housing Material

 N/A Titanium

Sensing Element

 N/A Ceramic, Shear

Weight

 N/A 3.3 g0.12 oz

Environmental

Temperature Range

 N/A -60 to 212 ºF-51 to 100 ºC

Thermal Coefficient of Sensitivity

 N/A 0.06 %/°F0.12 %/°C

Environmental Seal

 N/A Hermetic

Performance

Sensitivity

 N/A 100 mV/g10 mV/m/s²

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Applications

Applications

 N/A General Purpose Vibration Monitoring Modal Analysis Vibration control

Features

Features

 N/A 10-32 Stud Mount Base Isolated High Sensitivity IEPE Lightweight Single Axis
