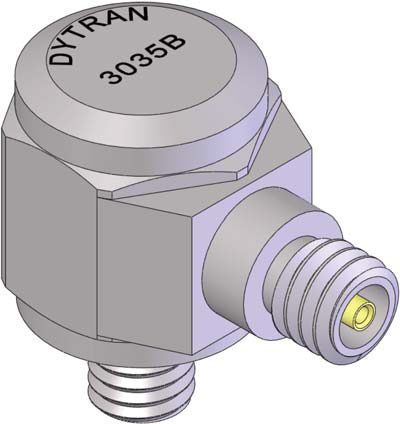

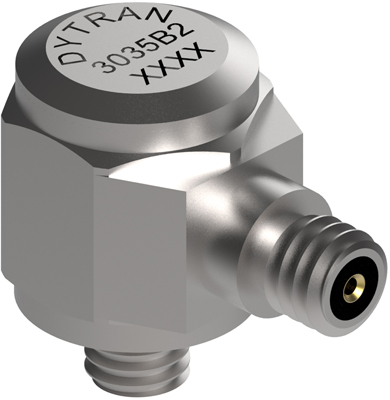

The Dytran 3035B series is a family of miniature IEPE accelerometers, available in three different models, with choice of 10, 50 or 100 mV/g sensitivity, an overall height of just 0.33 inches and a total weight of 2.5 grams.

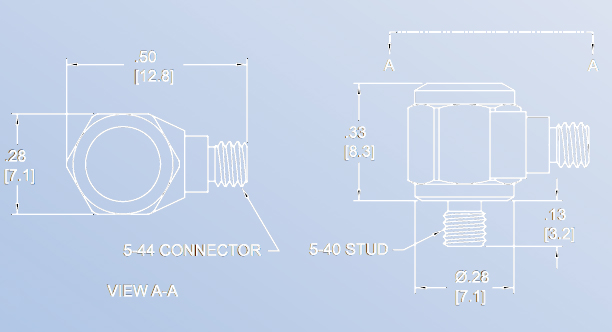

Sensors feature a rugged stainless steel construction, a 5-40 stud mount and 5-44 radial connector. Units are hermetically sealed for reliable operation in high-humidity and dirty environments. The 3035B series is similar in design to the Dytran 3035BG series, which differs only in terms of its type of mounting configuration. The 3035B series features a 5-40 mounting stud, while the 3035BG series is offered with adhesive mounting capabilities.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A Miniature/ESS

Height

 N/A 0.33 in

Measuring Acceleration Range

 N/A 100 g981 m/s²

Frequency Response

 N/A 0.5 to 10000 Hz

Frequency Response Gain

 N/A -5 dB+5 dB

Spectral Noise

 N/A G

Electrical Isolation

 N/A No

Maximum Shock

 N/A 3000 g29420 m/s²

Recommended Cabling Accessories

 N/A Model 6029A or model 6040A coaxial cable assembly (sold separately)

Physical

Housing Material

 N/A Stainless Steel

Sensing Element

 N/A Ceramic, Shear

Weight

 N/A 0.09 oz

Environmental

Temperature Range

 N/A -60 to 225 ºF-51 to 107 ºC

Thermal Coefficient of Sensitivity

 N/A 0.04 %/°F0.08 %/°C

Environmental Seal

 N/A Hermetic

Performance

Sensitivity

 N/A 5 mV/m/s²

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Applications

Applications

 N/A Environmental Stress Screening (ESS) General Purpose Vibration Measurements where Mass Loading is a Concern Modal and Structural Analysis of Small Objects Product Response Testing

Features

Features

 N/A 5-40 Stud Mount High Sensitivity IEPE Miniature design
