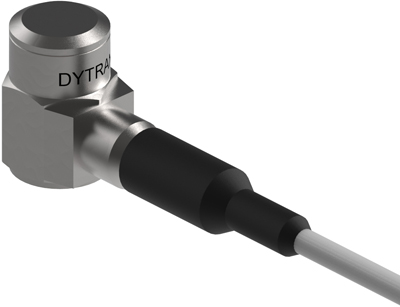

The Dytran model 3006A is moisture resistant, high-sensitivity single axis IEPE accelerometer with an overall weight of 12 grams.

Featuring a stainless steel construction, a 100 mV/g sensitivity, 10-32 mounting hole and low-noise JFET electronics, the model 3006A incorporates a 10-foot integral cable, with a splash-proof boot at the point of sensor and cable connection. The cable-to-accelerometer boot seal makes it possible for the sensor to be temporarily submerged during testing. Units are case isolated to avoid EMI/ground loop interference.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A Specialty

Measuring Acceleration Range

 N/A 50 g490 m/s²

Frequency Response

 N/A 0.32 to 15000 Hz

Frequency Response Gain

 N/A -1 dB+1 dB

Spectral Noise

 N/A G

Electrical Isolation

 N/A 1

Maximum Shock

 N/A 3000 g29420 m/s²

Recommended Mounting Accessories

 N/A One (1) model 6200 (10-32 to 10-32) mounting stud (supplied)

Recommended Cabling Accessories

 N/A Integral 10-foot boot sealed cable assembly (supplied)

Physical

Housing Material

 N/A Stainless Steel

Sensing Element

 N/A Ceramic, Shear

Weight

 N/A 0.42 oz

Environmental

Temperature Range

 N/A -60 to 250 ºF-51 to 121 ºC

Thermal Coefficient of Sensitivity

 N/A 0.06 %/°F0.12 %/°C

Environmental Seal

 N/A Hermetic

Performance

Sensitivity

 N/A 10 mV/m/s²

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Applications

Applications

 N/A Short-term Immersion Structural Monitoring Vibration Testing In Damp Environments

Features

Features

 N/A Case Isolated High Sensitivity IEPE Moisture Resistant Single Axis Splash Proof Boot
