Brands |
N/A Dytran |
Frequency Response |
N/A 1.0 to 7,000 Hz1.5 to 5,000 Hz |
Electrical Isolation |
N/A 10 GO |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) Accelerometer |
Number of Axis |
N/A 1 |

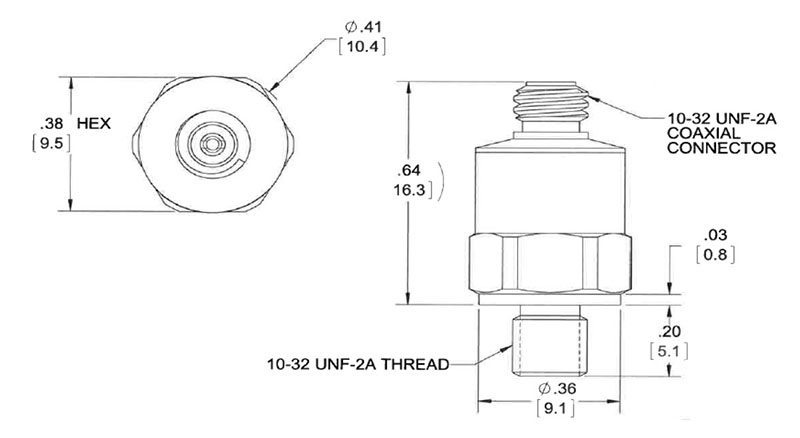

Connector Type |
N/A Coaxial |
Stud Mounting Provision |
N/A 10-32 United Fine (UNF-2A) |
Body Material |
N/A 17-4 PH Stainless Steel (SS) |
Sensing Element Material |
N/A Quartz |
Sensing Element Mode |
N/A Compression |
Weight |
N/A 6 g0.21 g |

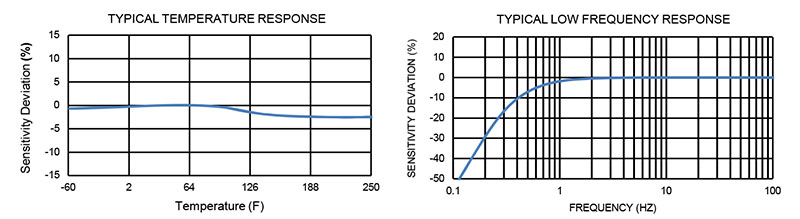

Temperature Range |
N/A -40 to 175 ºF-40 to 347 ºC |
Maximum Peak Shock |
N/A 1,00,000 g9,81,000 m/s² |
Environmental Seal |
N/A Epoxy |
Sensitivity |
N/A 0.01 mV/m/s² |
Sensitivity Tolerance (±) |
N/A 0.1 % |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measured using zero-based best straight-line method, % of F.S. or any lesser range. |
Maximum Transverse Sensitivity |
N/A 3 % |
Maximum Full Scale (F.S.) Range |
N/A 10,000 g98,000 m/s² |
Frequency Response at ±3 Decibel (dB) Bandwidth |
N/A 0.5 to 10,000 Hz |
Mounted Resonant Frequency |
N/A >90 kHz |
Root-Mean-Square (RMS) Equivalent Electrical Noise Floor |
N/A 0.7 g6.87 m/s² |
Power Supply Current |
N/A 2 to 20 mA |
Note for Power Supply Current |
N/A
Do not apply power to this device without current limiting, 20 mA MAX. To do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +4.5 to +20 V |
Direct Current (DC) Operating Bias Voltage |
N/A +1.7 to +3.4 V |
Note for Electrical Isolation |
N/A Case ground to mounting surface. |
Grounding |
N/A Base Isolated |
