  • Hermetically Sealed
  • High Charge Output
  • Robust Design
  • Base Isolated
Unit of Measure

Specifications

Brands

 N/A Dytran

Frequency Response

 N/A Up to 5000 Hz

Type

 N/A Charge Mode

Physical

Housing Material

 N/A Titanium

Connector Type

 N/A Coaxial

Connector Material

 N/A Titanium

Sensing Element Material

 N/A Ceramic

Element Style Type

 N/A Planar Shear

Weight

 N/A 10 g0.35 g

Environmental

Maximum Peak Vibration (±)

 N/A 600 g5886 g

Operating Temperature Range

 N/A -51 to 190 ºF-60 to 375 ºC

Environmental Seal

 N/A Hermetic

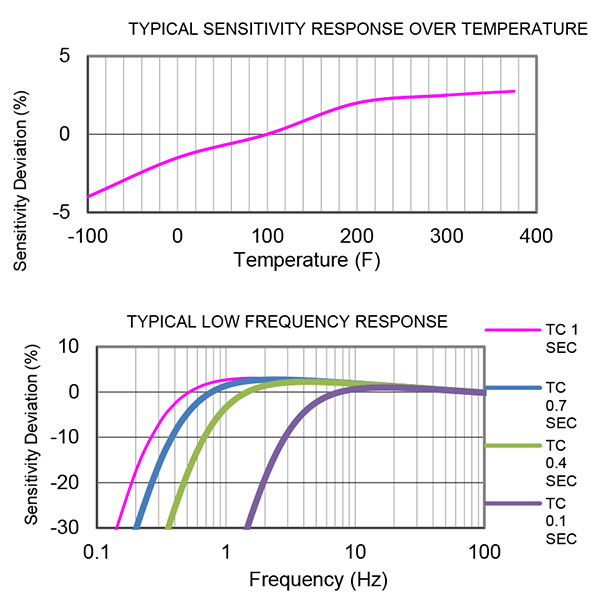

Coefficient of Thermal Sensitivity

 N/A 0.06 %/ºF0.11 %/ºC

Performance

Sensitivity

 N/A 15 pC/g1.53 pC/m/s²

Note for Sensitivity

 N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2.

Resonant Frequency

 N/A 32 kHz

Full Scale (F.S.) Linearity (±)

 N/A 1 %

Note for Full Scale (F.S.) Linearity (±)

 N/A Measured using zero-based best straight line method, % of F.S. or any lesser calibrated range.

Maximum Transverse Sensitivity

 N/A 5 %

Electrical

Nominal Capacitance

 N/A 975 pF

Minimum Electrical Isolation (Ground Pin to Case)

 N/A 10 GO

Note

Note

 N/A Units on the line drawing are in inches, units in brackets are in millimeters.

Supplied Accessories

Supplied Accessories

 N/A
  1. Model 6200 Mounting Stud
  2. Accredited Calibration Certificate (ISO 17025)
