Brands |
N/A Dytran |

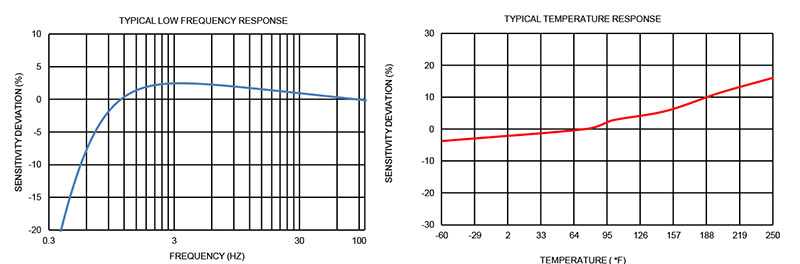

Frequency Response |
N/A 1.0 to 10000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Housing Material |
N/A Titanium |
Connector Type |
N/A 10-32 |
Connector Material |
N/A Titanium |

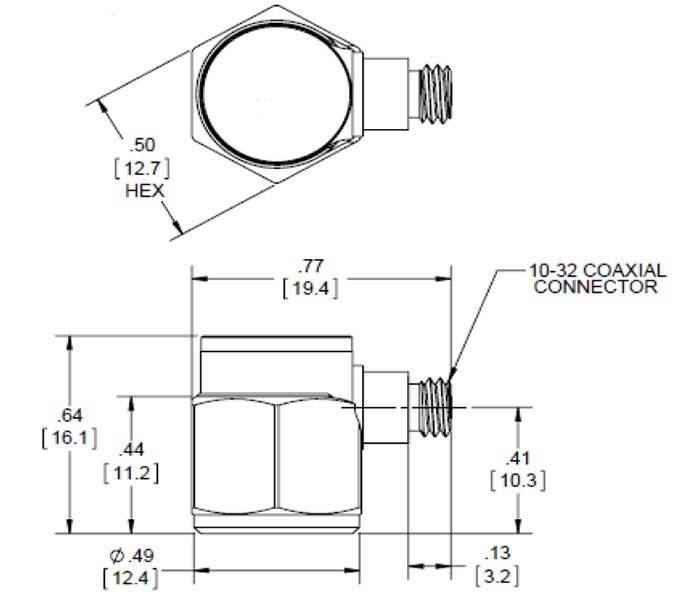

Tapped Hole Mounting Provision |
N/A 10-32 x 0.150 ↓ |
Sensing Element Material |
N/A Ceramic |
Element Style Type |
N/A Planar Shear |
Weight |
N/A 10 g0.35 g |
Maximum Peak Vibration (±) |
N/A 500 g4905 g |
Operating Temperature Range |
N/A -51 to +121 ºF-60 to +250 ºC |
Environmental Seal |
N/A Hermetic |
Transducer Electronic Data Sheet (TEDS) Operating Temperature |
N/A -40 to +85 ºF-40 to +185 ºC |
Transducer Electronic Data Sheet (TEDS) Feature |
N/A Institute of Electrical and Electronics Engineers (IEEE) 1451.4 |
Sensitivity |
N/A 5 mV/m/s² |
Sensitivity Tolerance (±) |
N/A 50 % |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Resonant Frequency |
N/A >36 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measured using zero-based best straight line method, % of F.S. or any lesser calibrated range. |
Root-Mean-Square (RMS) Broadband Resolution |
N/A 0.001 g0.01 m/s² |
Maximum Transverse Sensitivity |
N/A 5 % |
Note for Power Supply Current |
N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +11 to +13 V |
Typical Output Impedance |
N/A 100 O |
Minimum Electrical Isolation (Ground Pin to Case) |
N/A 10 GO |
