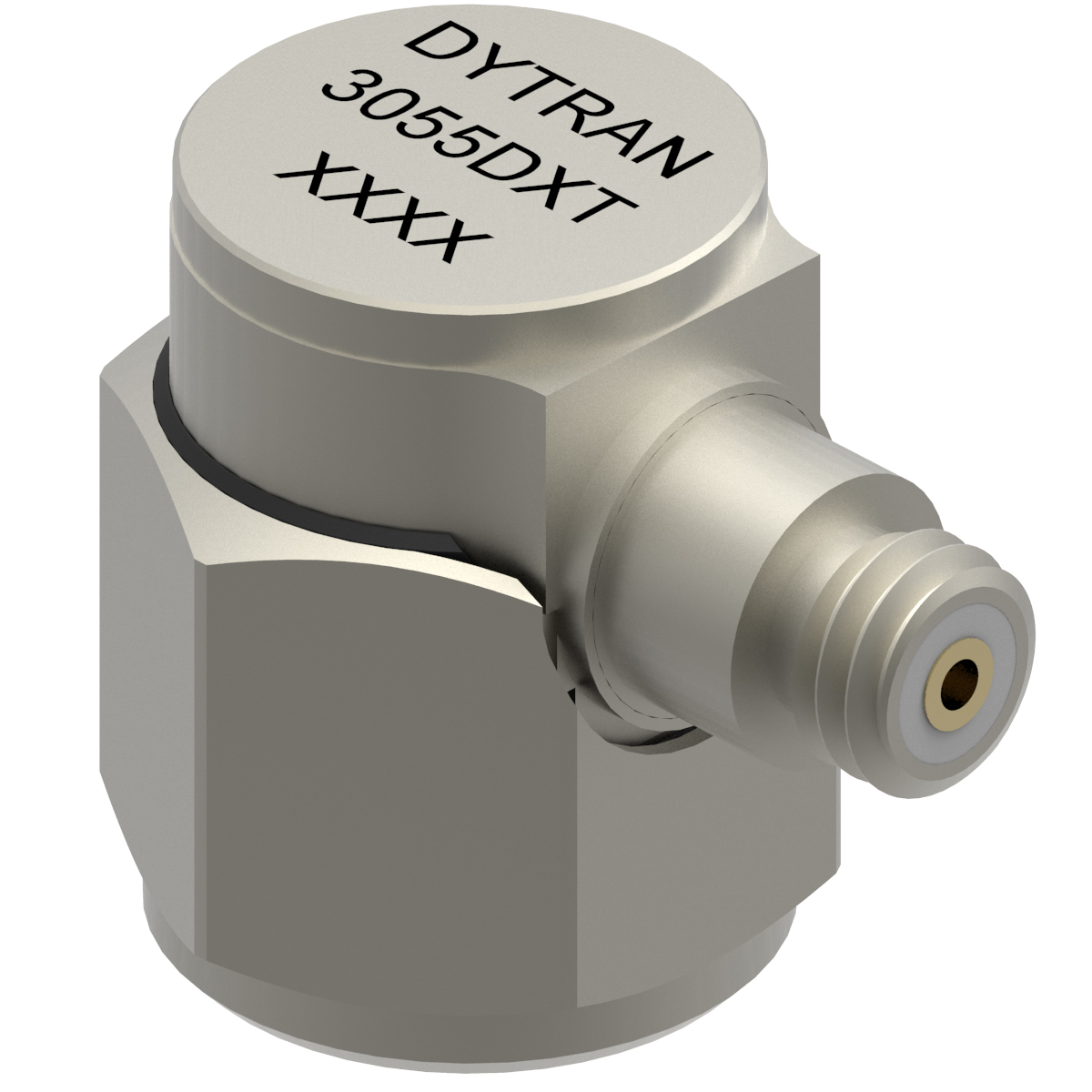

Sensing Element |
N/A Ceramic |
Connector Type |
N/A 10 to 32 |
Tapped Hole Mounting Provision |
N/A 10 to 32 |
Housing and Connector Material |
N/A Titanium |
Element Style |
N/A Planar Shear |
Weight |
N/A 0.35 oz10 g |
Temperature Range |
N/A -67 to +325 ºF-55 to +163 ºC |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 2000 g19620 m/s² |
Transducer Electronic Data Sheet (TEDS) Operating Temperature |
N/A -40 to +185 ºF+40 to +85 ºC |
Resonant Frequency |
N/A >36 kHz |
Full Scale (F.S.) Linearity (±) |
N/A ±1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measure using zero-based straight line method,% of F.S. or any lesser range |
Root-Mean-Square (RMS) Broadband Resolution |
N/A 0.00015 g0.001 m/s² |
Maximum Transverse Sensitivity |
N/A 5 % |
Peak Range for ± 5 Volts (V) Voltage Output |
N/A 10 g98 m/s² |
Sensitivity ±5% |
N/A 500 mV/g51 mV/m/s² |
Frequency Response ±5% |
N/A 1 to 5000 Hz |
Frequency Response ±10% |
N/A 1 to 10000 Hz |
Note for Sensitivity ±5% |
N/A Measured at 100Hz, 1g RMS per ISA RP 37.2 |
Strain Sensitivity @250µe |
N/A 0.002 g/µe0.02 m/s2/µe |
Compliance Voltage Range |
N/A +18 to +30 V |
Discharge Time Constant |
N/A 0.5 to 1.5 sec |
Typical Output Impedance |
N/A 100 O |
Direct Current (DC) Bias Voltage |
N/A +10 to +13 V |
Power Supply Current Range |
N/A 2 to 20 mA |
Note for Power Supply Current Range |
N/A Do not apply power to this system without current limiting, 20mA MAX. To do so will destroy the IC charge amplifier |
TEDS Feature |
N/A IEEE 1451.4 |
