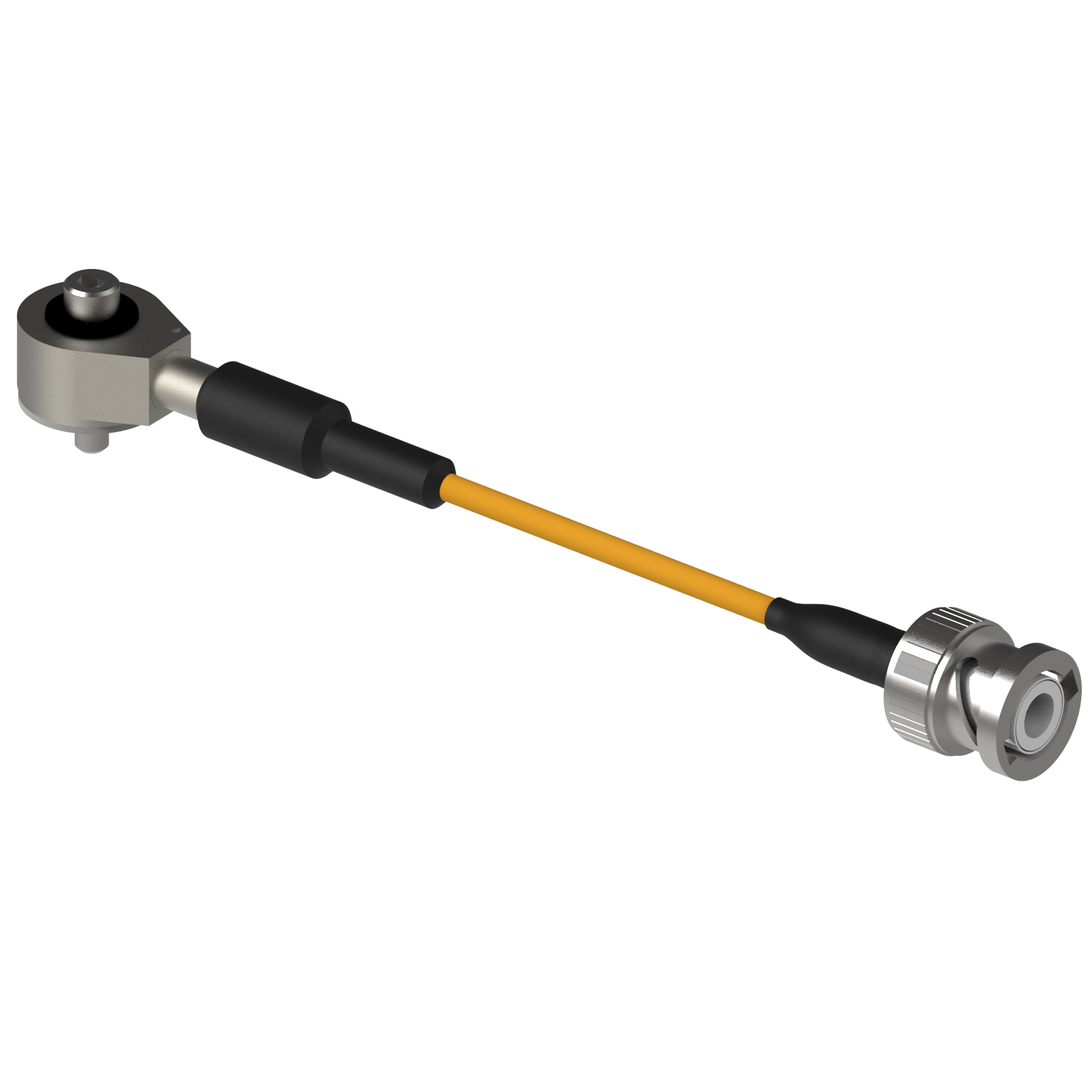

Brands |
N/A Dytran |
Electrical Isolation |
N/A 10 GO |
Mounting Recommendation |
N/A Prepare Flat Mounting Surface |
Recommended Mounting Torque |
N/A 10 to 12 lb/in |
Housing Material |
N/A Titanium |
Sensing Element |
N/A Ceramic |
Mounting Provision |
N/A 8-32 Mtg Screw |
Element Style |
N/A Shear |
Cable Type |
N/A Integral to BNC |
Weight (Less Cable) |
N/A 0.34 oz9.6 g |
Temperature Range |
N/A -60 to 212 ºF-51 to 100 ºC |
Maximum Peak Shock |
N/A 5000 g49050 m/s² |
Maximum Peak Vibration (±) |
N/A 500 g4905 m/s² |
Environmental Seal |
N/A Hermetic |
Seal, Accelerometer |
N/A Seal: Hermetic |
Resonant Frequency |
N/A > 31 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measure using zero-based straight line method, % of F.S. or any lesser range. |
Root-Mean-Square (RMS) Broadband Resolution |
N/A 0.0004 g0.004 m/s² |
Maximum Transverse Sensitivity |
N/A 5 % |
Range for ± 5 Volts (V) Voltage Output |
N/A 50 g491 m/s² |
Sensitivity ±5% |
N/A 100 mV/g10 mV/m/s² |
Frequency Response ±5% |
N/A 1 to 12800 Hz |
Frequency Response ±10% |
N/A 1 to 15000 Hz |
Note for Linearity |
N/A Measure using zero-based straight line method, % of F.S. or any lesser range. |
Note for Sensitivity ±5% |
N/A Measured at 100Hz, 1 Grms per ISA RP 37.2 |
Strain Sensitivity @250µe |
N/A 0.04 g/µe0.4 m/s2/µe |
Molded Boot Material |
N/A Polyurethane |
Discharge Time Constant |
N/A 0.5 to 1.5 sec |
Typical Output Impedance |
N/A 100 O |
Direct Current (DC) Bias Voltage |
N/A +11 to +13 V |
Minimum Electrical Isolation |
N/A 10 GO |
Direct Current (DC) Compliance Voltage Range |
N/A +18 to +30 V |
Power Supply Current Range |
N/A 2 to 20 mA |
Note for Power Supply Current Range |
N/A Do not apply power to this system without current limiting, 20 mA MAX. To do so will destroy the IC charge amplifier. |
Note for Excitation Current Range |
N/A Current increases 1.0 mA per .003 µF (3000 pF) cable capacitance. |
Note for Direct Current Supply Voltage |
N/A This voltage varies directly with supply voltage. |
