Brands |

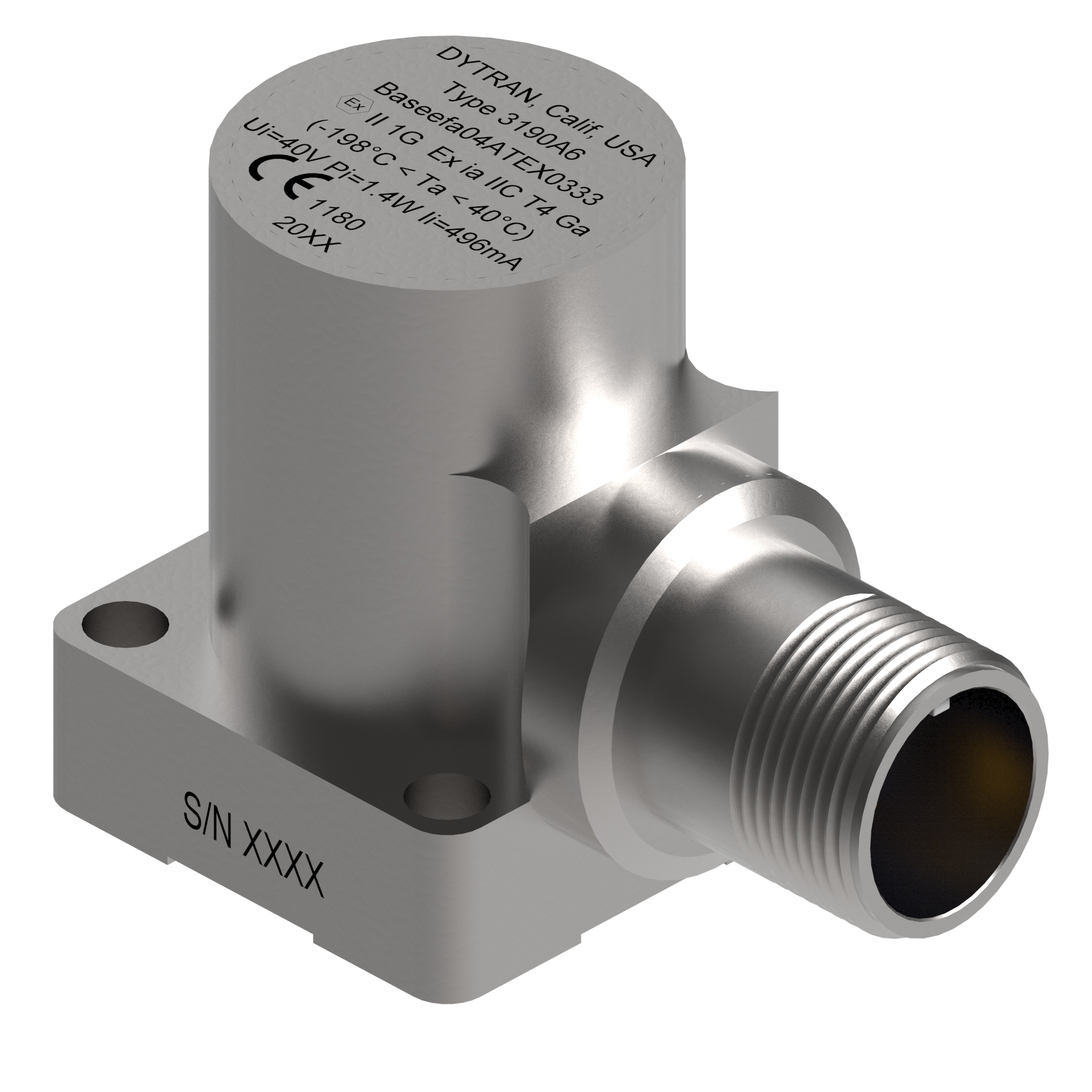

N/A Dytran |
Equivalent Electrical Noise Floor |
N/A 0.007 g0.07 m/s2rms |
Maximum linearity(zero based best fit straight line method) |
N/A ±2% %FS |
Excitation Voltage |
N/A -24 (-26 Maximum for Intrinsically safe circuits) |
Excitation Current Range |
N/A 5 mA |
Output DC Bias (with -24 VDC Supply Voltage) |
N/A -15 -VDC |
Full Scale Output |
N/A ±5 volts |
Mounting Provision |
N/A [4] |
Maximum Weight |
N/A 6.35 oz180 g |
Connector Type |
N/A 3PIN, MS3106A-10SL-3P |
Case and Connector Material |
N/A 300 Series Stainless Steel (SS) |
Note for Mounting Provision |
N/A [4] Clearance holes on 1.375 inch dia B.C. in 1.25 square flange. |
Weight |
N/A 6.35 oz180 g |
Temperature Range |
N/A -320 to +250 ºF-196 to +121 ºC |
Maximum Peak Shock |
N/A 2000 g19620 m/s² |
Maximum Peak Vibration (±) |
N/A 200 g1962 m/s² |
Seal, Accelerometer |
N/A Hermetic |
Peak Maximum Shock (±) |
N/A 19620 m/s²2000 g |
Full Scale (F.S.) Range for ± 5 Volts (V) Voltage Output |
N/A ±50 g±490 m/s² |
Resonant Frequency |
N/A >20 kHz |
Maximum Transverse Sensitivity |
N/A 5 % |
Maximum Strain Sensitivity |
N/A 0.001 g/µε0.01 m/s²/µε |
Root-Mean-Square (RMS) Equivalent Electrical Noise Floor |
N/A 0.007 g0.007 m/s² |
Full Scale (F.S) Range for ± 5 Volts (V) Voltage Output (Each Axis) |
N/A ±50 g±490 m/s² |
Note for Frequency Range |
N/A Measured at 1G, RMS vibration level, back to back comparison method per ISA RP 37.2 with equivalent capacitive load of 2 Kilometers of cable at 8.8 pF/M (.0176 µF). |
Sensitivity ±5% |
N/A 100 mV/g10.19 mV/m/s² |
Frequency Range ±10% |
N/A 2 to 5000 Hz |
Frequency Range ±3db |
N/A 0.5 to 8000 Hz |
Note for Sensitivity ±5% |
N/A A calibration certificate traceable to NIST is supplied with each instrument. |
