Accelerometer Input Range (±) |
N/A 10 g98 m/s² |
Frequency Response |
N/A 0 to 600 Hz |
Frequency Response at ±3 Decibel (dB) Bandwidth |
N/A 0 to 1,000 Hz |
Frequency Response Tolerance |
N/A ±5 % |
Sensitivity Differential |
N/A 50 mV/g5.1 mV/m/s² |
Sensitivity Differential Tolerance (±) |
N/A 5 % |
Note for Sensitivity Differential |
N/A Single ended sensitivity is half of values shown. |
Typical Root-Mean-Square (RMS) Differential Output Noise |
N/A 18 µg rms/√ Hz177 µm/s² rms/√ Hz |
Maximum Full Scale (F.S.) Non-Linearity (±) |
N/A 0.5 % |
Note for Maximum Full Scale (F.S.) Non-Linearity (±) |
N/A -90% to +90% of Full Scale |
Sensitivity Change with Excitation Voltage |
N/A 0.3 % |
Excitation Voltage |
N/A 6 to 22 V |
Accelerometer Cross Axis Sensitivity |
N/A < 3 % |
Maximum Weight |
N/A 0.28 oz8.0 g |
Cable Type |
N/A 4-Pin |

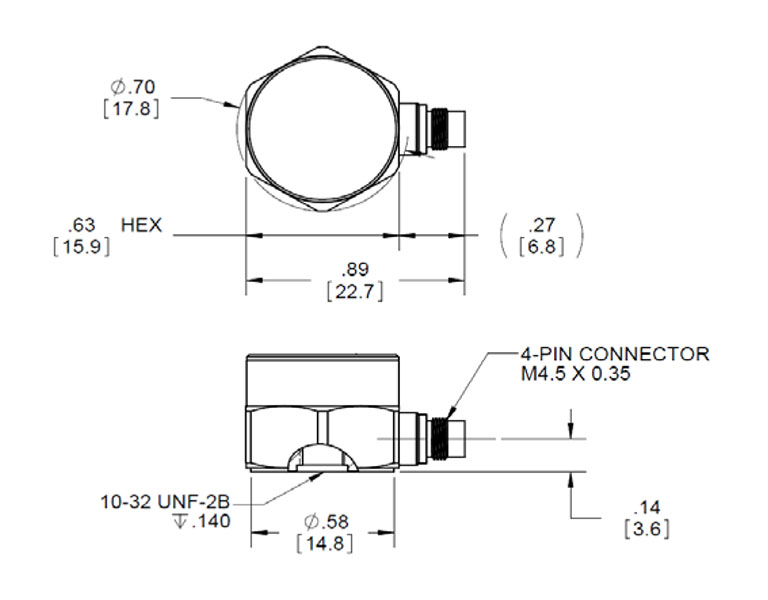

Thread Size |
N/A M4.5 x 0.35 |
Tapped Hole Mounting Provision |
N/A 10-32 United Fine (UNF-2B) |
Material |
N/A Ti-6AI-4V (Titanium (Ti)-6 Alloy (AL)-4V) |
Maximum Peak Mechanical Shock (0.1 ms) |
N/A ±5,000 g±49,050 m/s² |
Maximum Bias Temperature Shift of Span |
N/A 111 ppm/ºF200 ppm/ºC |
Note for Maximum Bias Temperature Shift of Span |
N/A Over the rated temperature range. |
Sensitivity Temperature Shift |
N/A -139 to +139 ppm/ºF-250 to +250 ppm/ºC |
Operating Temperature Range |
N/A -67 to +257 ºF-55 to +125 ºC |
Environmental Seal |
N/A Hermetic |
Note for Direct Current (DC) Typical Output Common Mode Voltage |
N/A Bias voltage equal to (+V - (-V)) / 2) |
Nominal Output Impedance |
N/A 1,225 O |
Direct Current (DC) Operating Voltage |
N/A ±3 to ±11 V |
Maximum Operating Direct Current (DC) (Each Axis) |
N/A 13 mA |
Change in Operating Current to Excitation Voltage |
N/A 0.25 mA/V |
