Accelerometer Input Range (±) |
N/A 10 g98.1 m/s² |
Frequency Response for X and Y-Axis |
N/A 0 to 600 Hz |
Frequency Response Tolerance |
N/A ±3 dB |
Sensitivity Differential |
N/A 400 mV/g40.8 mV/m/s² |
Sensitivity Differential Tolerance (±) |
N/A 10 % |
Note for Sensitivity Differential |
N/A Single ended sensitivity is half of values shown. |
Typical Root-Mean-Square (RMS) Differential Output Noise |
N/A 18 µg rms/√ Hz177 µm/s² rms/√ Hz |
Maximum Full Scale (F.S.) Non-Linearity (±) |
N/A 0.5 % |
Note for Maximum Full Scale (F.S.) Non-Linearity (±) |
N/A -90% to +90% of Full Scale |
Maximum Transverse Sensitivity |
N/A 3 % |
Maximum Scale Factor Calibration Error |
N/A 1 % |
Zero Measured Output (±) |
N/A 50 mV |
Maximum Weight |
N/A 0.5 oz13 g |
Cable Type |
N/A Integral |

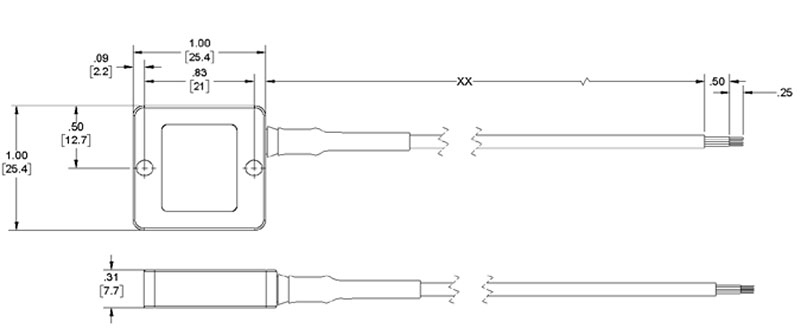

Number of Thru Hole for Mounting Provision |
N/A 2 |
Diameter of Thru Hole Mounting Provision |
N/A 0.13 in3.3 mm |
Material |
N/A Anodized Aluminum |
Maximum Peak Mechanical Shock |
N/A 5000 g49050 m/s² |
Maximum Bias Temperature Shift of Span |
N/A 111 ppm/ºF200 ppm/ºC |
Note for Maximum Bias Temperature Shift of Span |
N/A Over the rated temperature range. |
Maximum Bias Calibration Error of span |
N/A 0.5 % |
Operating Temperature Range |
N/A -67 to +257 ºF-55 to +125 ºC |
Scale Factor Temperature Shift |
N/A -111 to 111 ppm/ºF-200 to 200 ppm/ºC |
Note for Scale Factor Temperature Shift |
N/A Over the rated temperature range. |
Environmental Seal |
N/A Epoxy |
Direct Current (DC) Typical Output Common Mode Voltage |
N/A 2.45 V |
Nominal Output Impedance |
N/A 90 O |
Direct Current (DC) Operating Voltage |
N/A +5 to +28 V |
Operating Direct Current (DC) (AOP & AON Open) |
N/A 7 to 10 mA |
Power Supply Rejection Ratio |
N/A > 65 dB |
Case Isolation |
N/A 30 MO |
