Accelerometer Input Range (±) |
N/A 50 g490 m/s² |
Frequency Response for 50 Hertz (Hz) Frequency and ±3 Decibel (dB) Bandwidth |
N/A 0 to 300 Hz |
Note for Frequency Response |
N/A
Low pass first order filter, corner frequency at 300Hz. When measured with 50 Ohm sense resistor. |
Sensitivity Differential |
N/A 100 µA/g10.2 µA/m/s² |
Sensitivity Differential Tolerance (±) |
N/A 10 % |
Typical Root-Mean-Square (RMS) Differential Output Noise |
N/A 50 µg rms/√ Hz491 µm/s² rms/√ Hz |
Maximum Full Scale (F.S.) Non-Linearity (±) |
N/A 0.5 % |
Note for Maximum Full Scale (F.S.) Non-Linearity (±) |
N/A -90% to +90% of Full Scale |
Maximum Transverse Sensitivity |
N/A 4 % |
Maximum Scale Factor Calibration Error |
N/A 2 % |
Zero Measured Output (±) |
N/A 50 mV |
Maximum Weight |
N/A 2.5 oz70 g |
Connector Type |
N/A Receptacle, 3-Pin |
Note for Connector Type |
N/A Glenair P/N 805-006-13Z18-23PA. Mates with 805-001-16Z18-23SA and 805-002-16Z18-23SA |

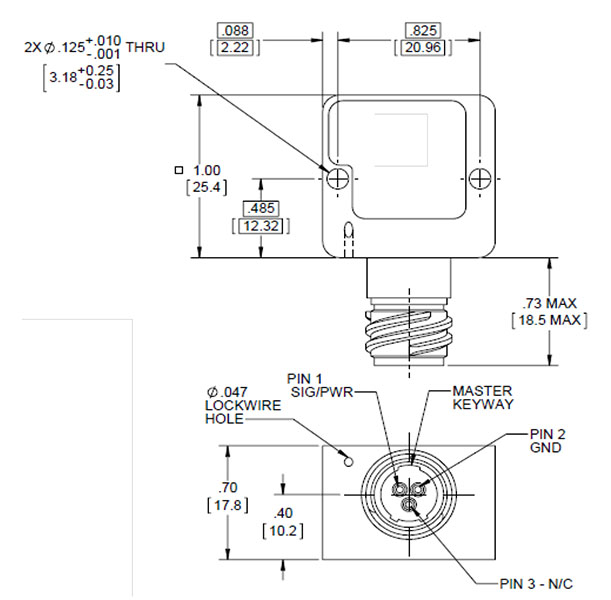

Number of Thru Hole for Mounting Provision |
N/A 2 |
Diameter of Thru Hole Mounting Provision |
N/A 0.125 in |
Material |
N/A 304L Stainless Steel |
Maximum Peak Mechanical Shock |
N/A 5000 g49050 m/s² |
Maximum Bias Temperature Shift of Span |
N/A 56 ppm/ºF100 ppm/ºC |
Note for Maximum Bias Temperature Shift of Span |
N/A Over the rated temperature range. |
Maximum Bias Calibration Error of span |
N/A 0.5 % |
Operating Temperature Range |
N/A -55 to +257 ºF-48 to +125 ºC |
Scale Factor Temperature Shift |
N/A -111 to 111 ppm/ºF-200 to 200 ppm/ºC |
Note for Scale Factor Temperature Shift |
N/A Over the rated temperature range. |
Environmental Seal |
N/A Hermetic |
