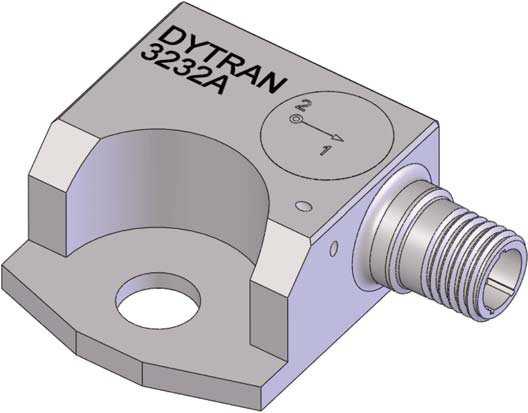

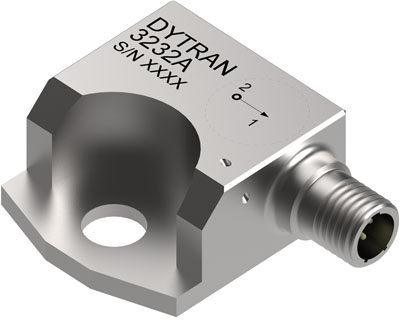

The Dytran 3232A series is a family of biaxial IEPE piezoelectric accelerometers, designed for use in Health and Usage Monitoring Systems (HUMS) as well as Active Vibration Control (AVC) applications typically found on commercial and military aircraft. This series is offered in sensitivities of 10 mV/g and 100 mV/g and has a radial 3-pin "Mighty Mouse™" connector with 5/16-28 thread.

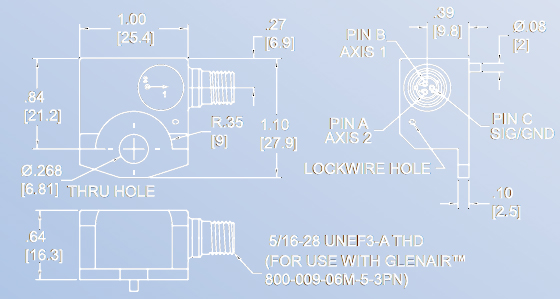

The distinguishing feature of these accelerometers is their Dytran developed integral mounting bracket design, facilitating improved sensor performance while eliminating costs associated with separate mounting brackets. They also offer reduced mass, as compared to conventional sensors and mounting brackets. The Dytran 3232A series are hermetically sealed for reliable operation within high-humidity and dirty environments as well as case isolated, to avoid EMI/ground loop interference.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A Airborne

Measuring Acceleration Range

 N/A 50 g490 m/s²

Frequency Response

 N/A 3.3 to 2500 Hz

Frequency Response Gain

 N/A -10 dB+10 dB

Spectral Noise

 N/A H

Electrical Isolation

 N/A 1

Maximum Shock

 N/A 5000 g49030 m/s²

Recommended Cabling Accessories

 N/A Model 6891A three conductor cable assembly (sold separately)

Features

 N/A Biaxial Bracket Style Case Isolated IEPE Mighty Mouse™" Connector/Removable Cable

Physical

Housing Material

 N/A Stainless Steel

Sensing Element

 N/A Ceramic, Shear

Weight

 N/A 45 g1.58 oz

Environmental

Temperature Range

 N/A -60 to 250 ºF-51 to 121 ºC

Thermal Coefficient of Sensitivity

 N/A 0.07 %/°F0.14 %/°C

Environmental Seal

 N/A Hermetic

Applications

Applications

 N/A Active Vibration Control (AVC) General Purpose Vibration Monitoring Health and Usage Monitoring Systems (hums)

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Performance

Sensitivity

 N/A 100 mV/g10 mV/m/s²
